An In-Depth Technical Analysis of Next-Generation Vision Processing, Onboard Deep Learning Capabilities, and Real-World Applications
The industrial machine vision landscape is experiencing a significant shift away from power-constrained edge sensors toward high-performance, embedded artificial intelligence platforms. Leading this evolution is the Hikrobot SC6000 Series Smart Camera, an all-in-one vision system engineered for complex inspection, defect detection, multi-variant recognition, and high-speed identification.
Combining high-resolution global shutter sensors, multi-core onboard computing, integrated multi-spectrum lighting, and the powerful VisionMaster (VM) software suite, the SC6000 series surpasses traditional vision sensor benchmarks while maintaining exceptional cost efficiency.

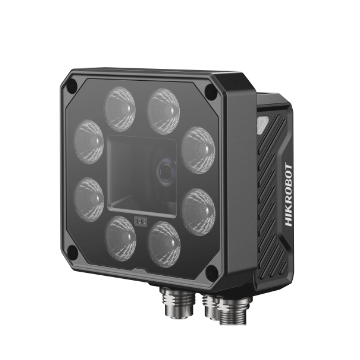

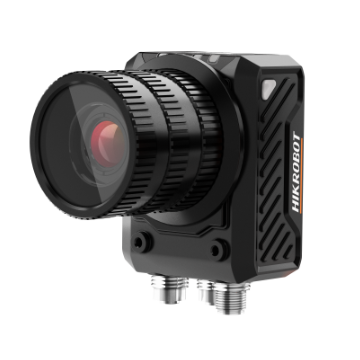

The SC6000 series includes both C mount and autofocus lens options
Hardware Architecture & Embedded Computing
Unlike entry-level smart cameras—such as the SC3000 series, which are designed for lower-power single-task executions—the SC6000 series incorporates a high-performance processing unit backed by 8 GB of RAM and 64 GB of local onboard storage. This enhanced processing capacity allows the system to process multiple complex algorithms concurrently within low cycle times.
| Hardware Parameter | Specification / Capabilities |
|---|---|
| Sensor Types & Resolutions | CMOS Global Shutter; 1.6 MP (1408 × 1204) up to 25 MP (5120 × 5120) |
| Max Frame Rates | Up to 120 fps (1.6 MP models) / 80 fps (5 MP models) |
| Onboard System Memory | 8 GB System RAM, 64 GB eMMC Storage |
| Integrated Lighting | Four-colour switchable light source (Red, Green, Blue, White via software) |
| Ingress Protection | IP67 sealed housing (with waterproof lens cap) |
| Fieldbus & Data Interfaces | Gigabit Ethernet (1000 Mbit/s), RS-232, Opto-isolated I/O, VGA/USB host |
The SC6000 hardware architecture is specifically optimised to perform continuous image acquisition and concurrent AI model execution without overloading CPU cycles or introducing frame drops.
VisionMaster Platform & Deep Learning Integration
At the core of the SC6000 series is the embedded VisionMaster (VM) algorithm module. Providing access to over 140 graphical algorithm tools, VM simplifies toolchain setup while supporting sophisticated visual processing:
- Deep Learning AI Neural Networks: Built-in deep learning algorithms enable high-accuracy Optical Character Recognition (OCR), defect classification, and non-rigid object recognition without complex manual rule-based coding.
- Multi-Color Light Control: The software controls the four-color integrated light panel (red, green, blue, white), enabling dynamic wavelength adjustments to optimize surface contrast across diverse materials.
- Industrial Communication Protocols: Native support for TCP/IP, UDP, Modbus, Profinet, EtherNet/IP, MELSEC, FINS, and FTP ensures seamless integration with factory PLCs, industrial PCs, and SCADA systems.

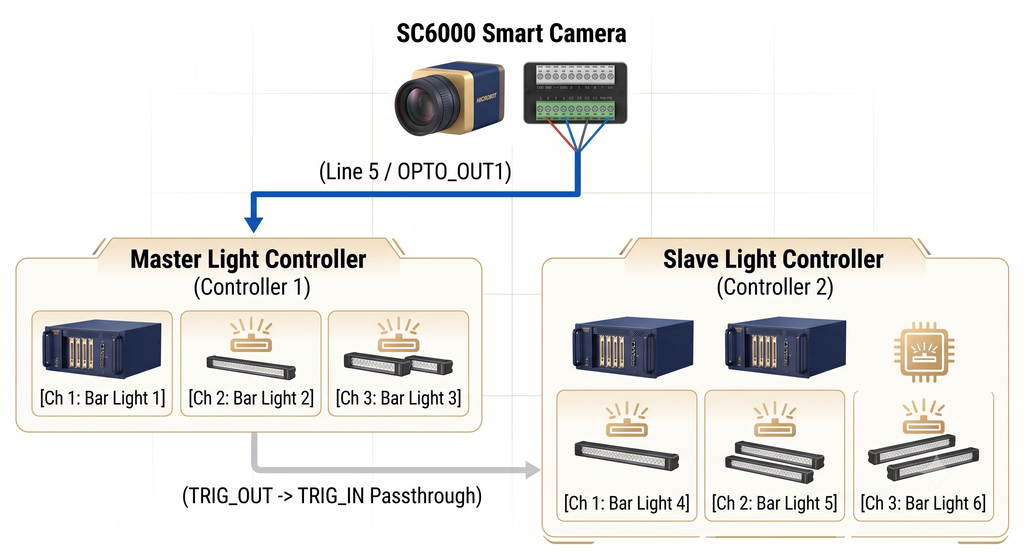

Master-Slave External Lighting Synchronisation
For applications demanding ultra-high illumination across broad inspection areas, the SC6000 camera acts as a system controller via its 17-pin M12 multi-IO interface.
Using configurable opto-isolated outputs (e.g., Line 5 / OPTO_OUT1), the SC6000 can trigger single or cascaded multi-channel external LED controllers. This master-slave daisy-chain architecture allows up to 6 high-power bar lights (consuming over 600 Watts combined) to strobe simultaneously with sub-millisecond precision, keeping the lights off between exposures to preserve LED life and eliminate thermal buildup.
Real-World Industrial Applications
1. Food Packaging & Seal Area Contamination
In high-speed food processing—such as ready-meal lasagne production lines—the SC6000 inspects product visual quality while monitoring packaging integrity.
- Color & Layer Verification: Validates sauce and cheese distribution using custom visual color tools.
- Seal Area Contamination: Detects bubbling sauce or food debris on the plastic tray seal flange prior to heat sealing, preventing defective thermal seals.
- Tray Distortion & Alignment: Measures structural deformation of plastic trays at line speeds.
- Automatic Variant Recipe Switching: Receives variant selection signals directly from a master PLC or on-screen menu to adjust inspection parameters instantly.
2. High-Speed Industrial Identification & OCR
Traditional barcode readers often struggle with damaged, low-contrast, or reflective surface codes. The deep-learning OCR and 1D/2D decoding algorithms on the SC6000 allow for stable code reading on moving conveyors across logistics, automotive, and electronic assembly environments.
3. Automated Defect & Surface Inspection
Leveraging global shutter sensors up to 25 MP and high dynamic range image processing, the SC6000 detects tiny micro-cracks, surface scratches, and assembly errors across metal, glass, and semiconductor surfaces.
Commercial Positioning & Cost Efficiency
When evaluating high-performance AI vision systems, capital expenditure is often a primary consideration for small-to-medium enterprises and system integrators alike. The Hikrobot SC6000 series offers a high feature-to-cost ratio, delivering advanced AI capabilities and fieldbus connectivity at a competitive price point.
Depending on sensor resolution (1.6 MP to 25 MP), optical mounting choices, and integrated lighting modules, available from smartcameras.ai/; the price ranges from just £1800 to £5000. This makes the SC6000 an accessible, versatile solution for upgrading legacy vision systems or deploying comprehensive automated quality control lines.
Call us on +44 (0) 1353 515960 or email us via sales@smartcameras.ai for a stock check. We also have units available for evaluation.
